Series One

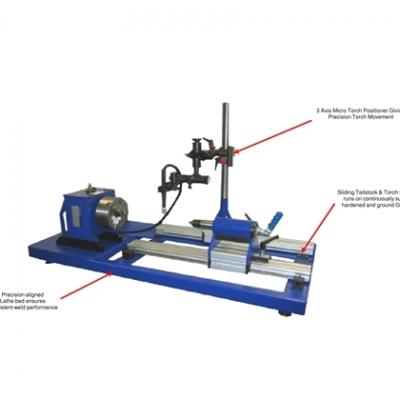

Series One Welding Lathe
  • The smallest in our range of welding lathes.
  • Utilising the Model B Headstock with a variety of functional options.
  • From on/off rotation and speed control, to fully programmable weldset interfacing.
  • Suitable for TIG, Plasma and MIG welding applications.
  • Simple to set up and use.
  • The programmable speed can be accurately set within 0.01 RPM and maintained by encoder closed loop control during welding.
  • When used with either the Interfaced controller, IE 160 or narrow bead InterPulse welders, the Series One Lathe can form part of an automatic welding system.
  • Option of pendant sequence start / stop or where a Weld Cabinet is supplied, by door closure.
  • 230 Volt 50 Hz operation (110 Volt optional)



Standard machine capacity:
  • 500mm between centres, 250mm max diameter



Advantages:
  • Speed range 0.25 to 5.0 RPM as standard.
  • Other speed ranges available on request.
  • 200 Amp earth return brush gear with insulated M12 brass stud for connection to the weld set.
  • 25KG weight capacity.
  • Clockwise and counter clockwise rotation control.
  • Complete with 2 or 3-axis Micro Torch Positioner.
  • Can be rapidly repositioned at any location along the length of the lathe and locked into position.
  • Supplied with Weld Torch Clamp.
  • Can be fitted with either a 200mm faceplate, 160mm 3-jaw or 4-jaw self centring chuck.
  • Custom tooling also available.
  • Option of Standard, Interfaced, or weldset controller configuration.
  • The weldset controller provides program storage and keyswitch lock, preventing the operator adjusting preset welding parameters.
  • Adjustable sliding tailstock which can be locked in any position along length of bedway.
  • Quill extension controlled by either hand operated lever or optional pneumatic cylinder. Quill stroke 40mm (100mm pnuematic version)
  • Quill provided with MT2 Live Centre
