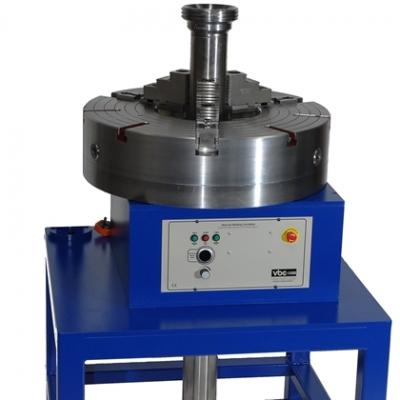

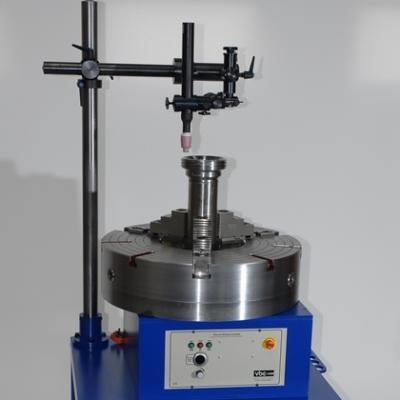

Model Y – Faceplate diameter 750mm, Vertical load 2000kg

Model Y – Faceplate diameter 750mm, Vertical load 2000kg

Advantages:
  • Large 250mm through bore speed range:-
    • Hollow shaft:0.1 to 3.0 RPM
  • Other speed ranges available upon request.
  • 800 Amp earth return brush gear with insulated M16 brass stud for connection to the weld set.
  • Weight capacity:-
    • Hollow shaft 2000Kg as a turntable, 1000Kg as a Headstock.
  • Clockwise and counter clockwise rotation control.
  • Encoder feedback for accurate closed loop control.
  • Can be fitted with either a 750mm faceplate or 600mm 3-jaw self-centring chuck.
  • The available internal bore diameter is still 250mm when fitted with 600mm Chuck.
  • The faceplate has concentrically scribed alignment circles and 4 radial clamping slots.
  • Option of additional foot switch or variable speed foot pedal (Manual Model Y only)
