Braze Powder Dispenser

Braze Powder Dispenser

These machines are designed as an aid to the manufacturing process of brazing honeycomb to the substrate. The Powder Dispenser replaces the need for the manual and inaccurate "pepper pot" method and provides a waterfall of even braze powder over the tacked honeycomb. Thus improving the quality of the brazing cycle.



This innovative machine has come to revolutionise the application procedure of
brazed honeycomb segments. Negating the need to use expensive transfer tape and yet
still achieve a repeatable process, this machine will save you time and money.

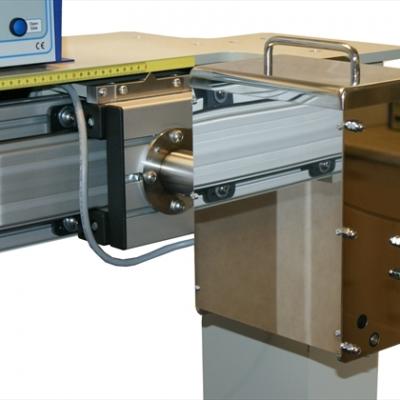

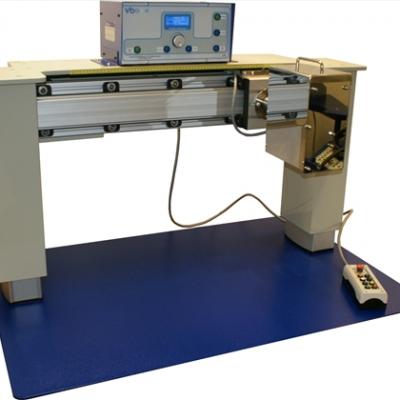

6” wide powder dispenser mounted on a motor driven linear slide with 500mm travel.
Stainless steel hopper.
Dispenser slide assembly lowered and raised on two electronic lifting columns.
450mm column travel, giving approx 350mm to 800mm gap between dispenser nozzle and base plate.
Soft-start and soft-stop functions on the lifting columns.
Mounted on a 1200mm x 800 plate fabricated from steel RHS.
Oil and scratch resistant powder coated finish, with adjustable feet.



4 line LCD display
Set linear travel speed
Set powder release start & stop positions
Manual jog left and right
Manual hopper empty
Up/down controls for raising/lowering of electronic columns
Store up to 16 schedules
Remote pendent




Bespoke machines available - Please ask
